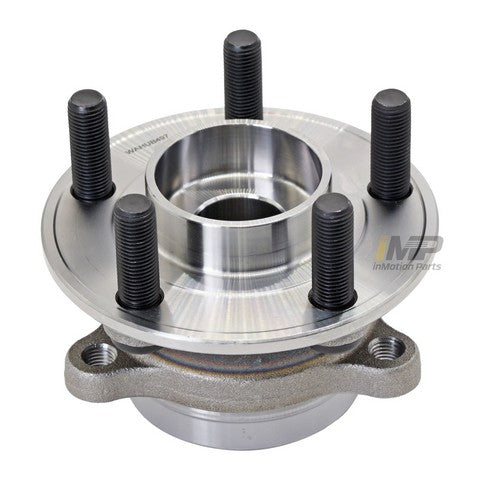

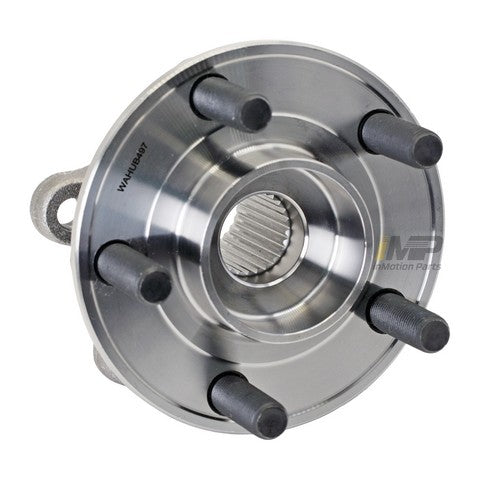

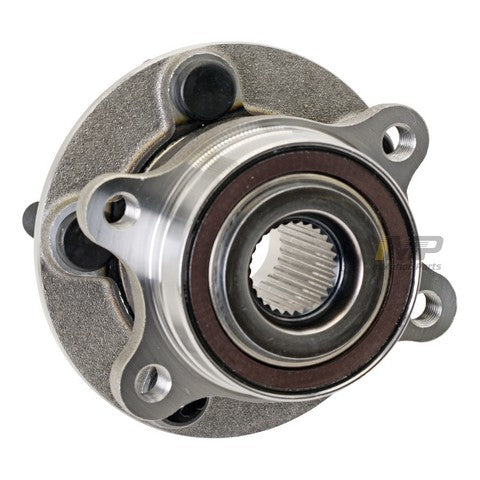

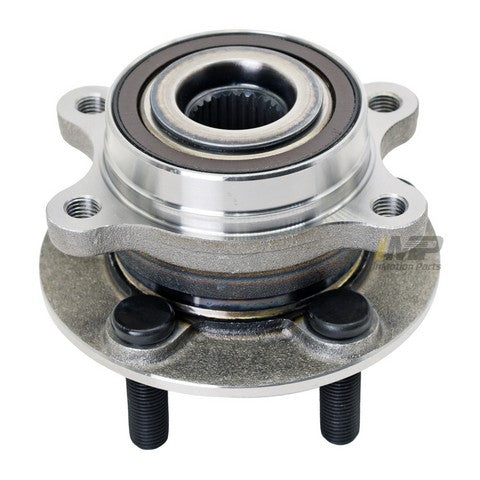

Wheel Bearing and Hub Assembly inMotion Parts WAHUB497

Wheel Bearing and Hub Assembly inMotion Parts WAHUB497

by inMotion Parts

Part will fit your current fitment selection of None

Part will NOT fit your current fitment selection of None

$0
$208.54 - $208.54
$208.54
$208.54 - $208.54
$208.54
  • Wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may be used as a direct replacement for the original part. Each part is engineered using OE data and measurements to ensure fitment, performance, and longevity.
  • Fitment and function are ensured by precision machining and measurements with rigorous testing and inspections of material and components
  • Designed to meet stringent fatigue requirements in order to reduce premature failure
  • Reinforced seal design material allows for optimal performance in harsh environments
  • Engineered to undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability
  • Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data (where applicable)
 More payment options

Pickup available at 725 Shea Rd

Usually ready in 24 hours

Wheel Bearing and Hub Assembly

Name Value
Flange Diameter (in) (Inch) 5.35
Flange Diameter (mm) (Millimeter) 136
Flange Offset (in) (Inch) 1.89
Flange Offset (mm) (Millimeter) 48
Hub Pilot Diameter (in) (Inch) 3.43
Hub Pilot Diameter (mm) (Millimeter) 87
Gasket Or Seal Included No
Flange Shape Round
Weight - Each (Gross Pounds) 5.2900
Height - Each (Inch) 4.5000
Length - Each (Inch) 6.1000
Width - Each (Inch) 6.1000
Greaseable No
Material GCr15
Short Description Hub Assembly
Bearing Type Ball Roller
Abs Connector Shape Cover
Wiring Harness Included No
Wiring Harness Length (in) N/A
Abs Ring Type Magnetic encoder
Number Of Mounting Bolts To Knuckle 0
Number Of Lug Bolts Included 5
Lug Bolt Thread Size M14-1.5
Hub Centerbore Diameter (in) 2.2000000000000002
Hub Centerbore Diameter (mm) 56
Number Of Flange Bolts Included 5
Flange Bolt Size (in) M14-1.5
Flange Bolt Size (mm) 37.5
Flange Bolt Thread Size M14-1.5
Driven Or Non-driven Driven
Number Of Splines 27
New Or Remanufactured New
Number Of Abs Sensor Ring Teeth 88
Item Level GTIN 00789120179529
Abs Sensor Ring Diameter (mm) 80
Abs Sensor Ring Diameter (in) 3.15
Total Hub Height (in) 4.3899999999999997
Total Hub Height (mm) 111.4
Terminal Gender Female
Number Of Terminals 1
Total Hub Diameter (in) 5.35
Total Hub Diameter (mm) 136
Make ModelYearEngineType
FORD MUSTANG MACH-E22-21AllWheel Bearing and Hub Assembly - REAR
FORD MUSTANG MACH-E22-21AllWheel Bearing and Hub Assembly - FRONT
